- Krídla Dudek s reflexnými profilmi sú momentálne najúspešnejšie a najobľúbenejšie motorové padáky vo svete
- Čísla hovoria za seba
- Na ME 2008 z celkovo 95 zúčastnených krídel bolo 39 reflexných krídel Dudek to je 41%; fenomenálny ReAction vyhral v triede PF1 (jednomiestne krosny) aj v triede PL1 (jednomiestne trojkolky)
- Reflexný profil umožňuje letieť oproti klasickým krídlam o triedu väčšou rýchlosťou pri nepredstaviteľnej stabilite a pocite bezpečia.

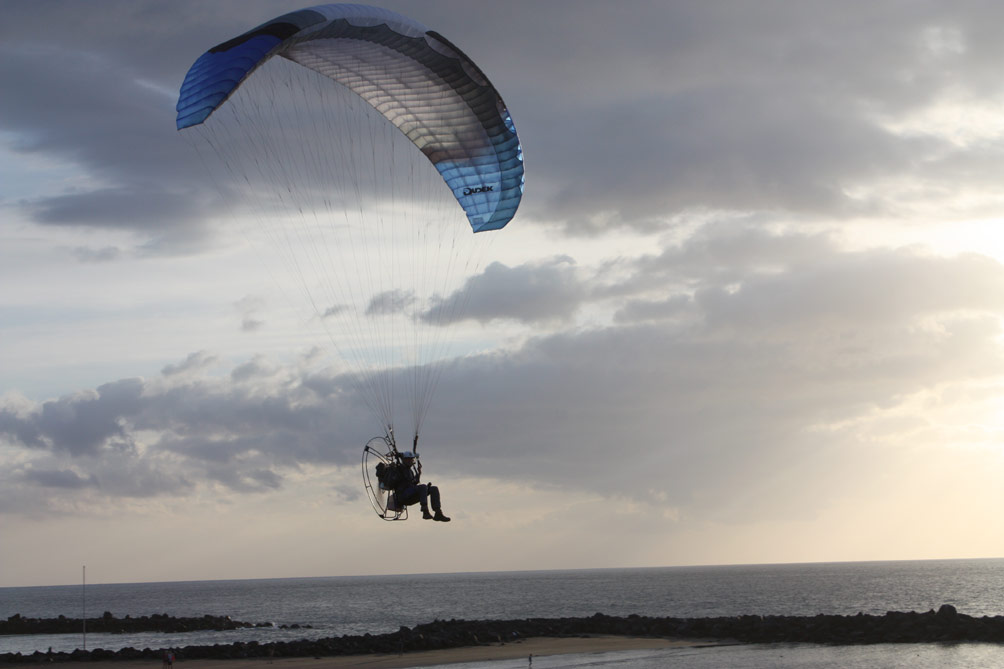

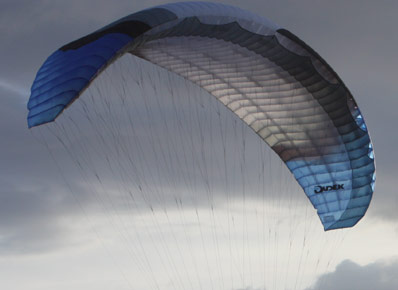

Synthesis
|
Size
|
25
|
27
|
29
|
31
|
34
|
|
Certification
|
C*
|
C*
|
C* / DMSV
|
C*
|
C*
|
|
Number of cells
|
50
|
50
|
50
|
50
|
50
|
|
Surface area (flat) [m2]
|
25.00
|
27.00
|
29.00
|
31.00
|
34.00
|
|
Surface area (projected) [m2]
|
21.46
|
23.17
|
24.89
|
26.61
|
29.18
|
|
Span (flat) [m]
|
11.29
|
11.73
|
12.16
|
12.57
|
13.17
|
|
Span (projected) [m]
|
9.01
|
9.36
|
9.70
|
10.03
|
10.50
|
|
Aspect ratio (flat)
|
5.10
|
|
Aspect ratio (projected)
|
3.78
|
|
Sink rate [m/s]
|
min = 1.2; trim= 1.4-2.2; max = 3.5
|
|
Speed [km/h]
|
min = 23; trim = 37-49; max = 61
|
|
Max cord [cm]
|
273.91
|
284.65
|
295.00
|
305.00
|
319.43
|
|
Min cord [cm]
|
60.35
|
62.72
|
65.00
|
67.20
|
70.38
|
|
Distance pilot to wing [cm]
|
724.23
|
752.62
|
780.00
|
806.44
|
844.58
|
|
Total lines lenght [m]
|
412.25
|
428.42
|
444.00
|
459.05
|
480.76
|
|
Weight range ** [kg]
|
70-90
|
80-105
|
95-120
|
110-135
|
135-165
|
| Load test [kg] |
up to 175
|
up to 175
|
up to 175
|
up to 208
|
up to 208
|
| Weight of the wing [kg] |
5.7
|
6.7
|
7.2
|
7.6
|
8,2
|
|
Lines
|
Technora 1.2 & 1.3 & 1.5 & 1.8 & 2.3
|
|
Fabric
|
SkyTex Evolution 45
g/m2
SkyTex Classic 40 g/m2
SkyTex Hard 40 g/m2
SR Scrim, SR Laminate 180 g/m2
|
|
Risers
|
Pasamon - Bydgoszcz, Polska
|
|
|
|
|
nahor
|

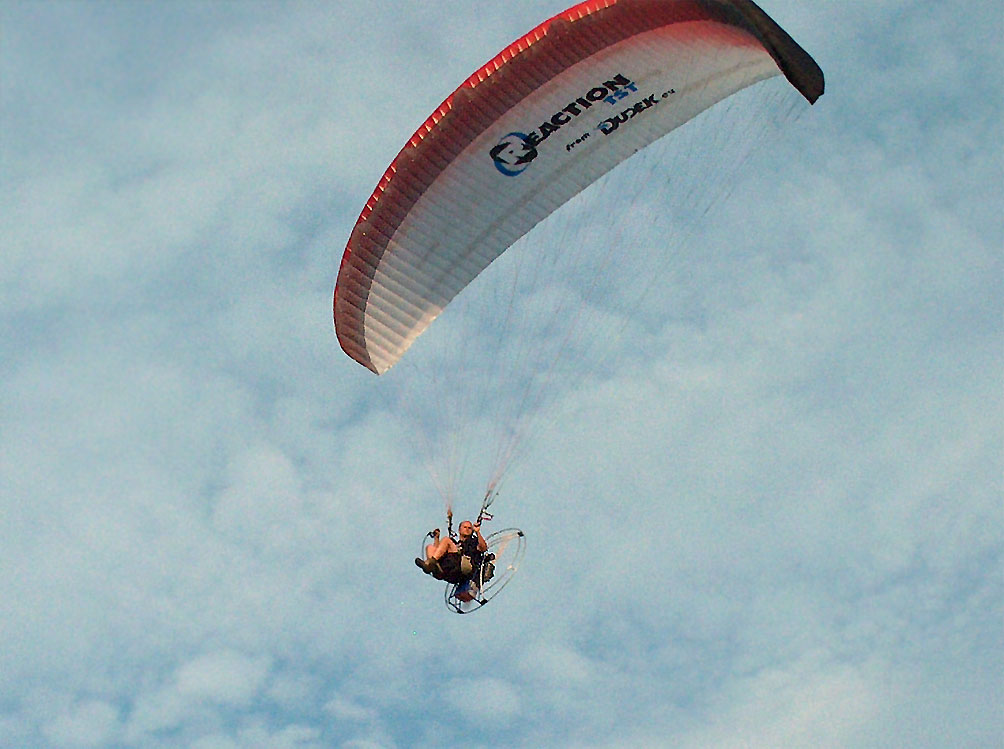

ReAction
Športové krídlo. Držiteľ svetového rýchlostného rekordu a
svetového rekordu s limitovaným palivom zároveň.
|
Size
|
25
|
27
|
29
|
31
|
|
Certification AFNOR/CEN
|
Performance
|
Stand./Perform.
|
Stand./Perform.
|
Performance
|
|
Number of cells
|
65
|
65
|
65
|
65
|
|
Surface area (flat) [m2]
|
25,77
|
27,81
|
29,80
|
31,92
|
|
Surface
area (projected) [m2]
|
22,82
|
24,63
|
26,39
|
28,27
|
|
Span (flat) [m]
|
11,83
|
12,29
|
12,72
|
13,17
|
|
Span (projected) [m]
|
9,82
|
10,20
|
10,56
|
10,93
|
|
Aspect ratio
|
5,43/4,23
|
|
Sink rate [m/s]
|
min = 1,1; trim= 1,5-2; max = 3,1
|
|
Speed [km/h]
|
min = 23; trim = 42-46; max = 60
|
|
Max cord [cm]
|
267
|
277
|
287
|
297
|
|
Max
wing depth [cm]
|
50
|
52
|
54
|
56
|
|
Distance pilot to wing [cm]
|
748
|
777
|
804
|
832
|
|
Total line lenght [m]
|
397
|
411
|
427
|
442
|
|
Weight ranges * [kg]
|
70-90
|
80-105
|
95-125
|
105-135
|
|
Weight of the wing [kg]
|
6,8
|
7,1
|
7,5
|
7,8
|
|
Lines
|
Technora 1,2 (or non-sheathed
Dyneema Ultimate 0,8 for 'Sport' version)
& Technora 1,3 & 1,5 & 1,8 & 2,3
|
|
Fabric
|
SkyTex Aquatic 44 g/m2 (E85A)
SkyTex New 39 g/m2 soft finish (E38A)
SkyTex New 39 g/m2 hard finish (E29A)
Mylar Polyester Scrim 180 g/m2
|
|
|
nahor
|

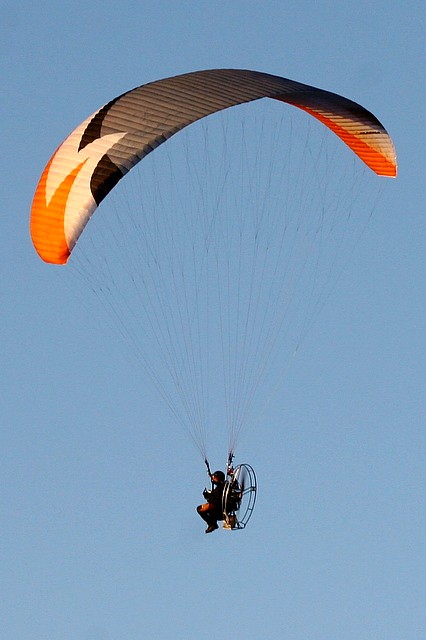

Plasma
Súťažné krídlo s max rýchlosťou 67 km/h a pristávacou rýchlosťou 24 km/h.
|
name - size
|
Plasma 25
|
Plasma 26.5
|
Plasma 28
|
Plasma 30
|
|
Certification
|
-
|
-
|
-
|
-
|
|
Number of cells
|
70
|
70
|
70
|
70
|
|
Surface area (flat) [m2]
|
25,00
|
26,50
|
28,00
|
30,00
|
|
Surface area (projected) [m2]
|
21,75
|
23,05
|
24,36
|
26,09
|
|
Span (flat) [m]
|
12,14
|
12,50
|
12,85
|
13,30
|
|
Span (projected) [m]
|
9,91
|
10,20
|
10,49
|
10,85
|
|
Aspect ratio (flat)
|
5,90
|
|
Aspect ratio (projected)
|
4,52
|
|
Sink rate [m/s]
|
min = 1.0 ; trim = 1.2-1.8 ; max = 3.0
|
|
Speed [km/h]
|
min = 24 ; trim = 39-50 ; max = 67
|
|
Max cord [cm]
|
254
|
262
|
269
|
279
|
|
Minimum cord [cm]
|
51,50
|
53,00
|
54,50
|
56,00
|
|
Distance pilot to wing [cm]
|
808
|
832
|
855
|
885
|
|
Total lines lenght [m]
|
457
|
471
|
484
|
502
|
|
Weight range * [kg]
|
70 - 95
|
80 - 105
|
90 - 120
|
105 - 140
|
| Weight of the wing [kg] |
6.6
|
6.8
|
7.1
|
-
|
|
Lines
|
Technora (non-sheathed) 0,5 & 0,8
Technora 1,2 & 1,3 & 1,5 & 1,8 & 2,3
|
|
Fabric
|
SkyTex Evolution 45
g/m2
SkyTex Classic 40 g/m2
SkyTex Hard 40 g/m2
SR Scrim, SR Laminate 180 g/m2
|
|
|
